A briquette press for the efficiency and sustainability of your production process
Meconaf is importer for the Netherlands of briquette presses and shredders of the Comafer brand. Collecting wood dust and shavings in filter units used to be done in plastic bags. Under the current filter units according to the underpressure principle, containers are placed in most cases. Due to the operation on negative pressure, the filling of the containers is not optimal. As a result, a lot of time is lost in emptying these containers. By placing a briquette press under a new or existing filter unit, a great deal of time can be saved. In addition, a briquette press provides a volume reduction of up to 80 percent. The briquettes are ideal for burning in wood-burning stoves, which we supply. The briquette presses are available in various capacities.
Options for a briquette press:
-
- Level indicator for automatic start/stop
- Inspection door in hopper
- Special star for long briquettes
- Antifreeze
- Automatic bagging machine for 10 bags
- Various cyclones and filters for integration into your extraction system
An extraction system that fits your needs seamlessly
Technical data:
|
Description/Type
|
Unit
|

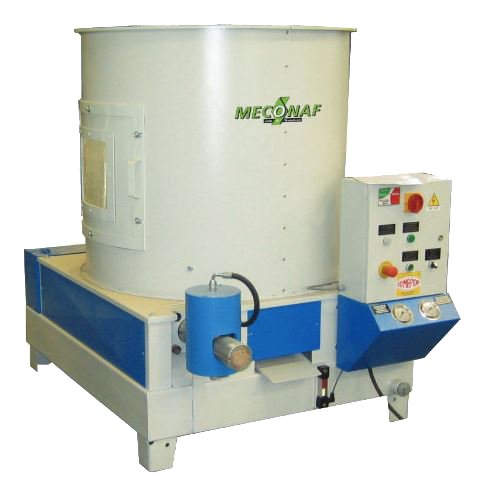

70N
|
85N
|
110N
|

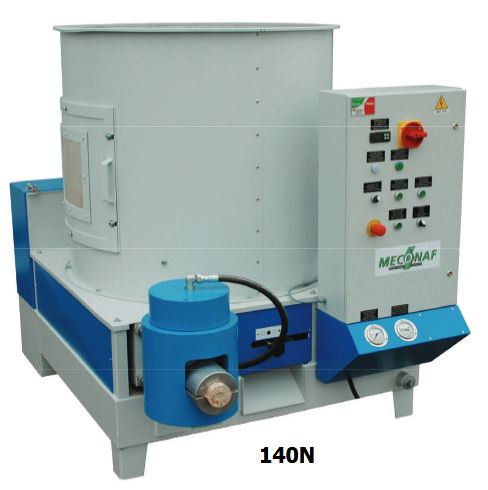

140N
|
250N
|
350S
|
|---|---|---|---|---|---|---|---|
|
Capacity
|
kg/h
|
30-60
|
40-85
|
50-110
|
70-140
|
100-250
|
120-350
|
|
Motor power pump
|
kW
|
5,5
|
5,5
|
7,5
|
9,3
|
11
|
15
|
|
Briquettes ø
|
mm
|
55
|
60
|
65
|
70
|
75
|
75
|
|
Press Press
|
kg/cm²
|
700
|
800
|
900
|
1000
|
1100
|
1200
|
|
Number of cylinders
|
st.
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Briquette cylinder ø
|
mm
|
120
|
140
|
160
|
180
|
200
|
200
|
|
Briquette length
|
mm
|
50
|
50
|
60
|
65
|
70
|
70
|
|

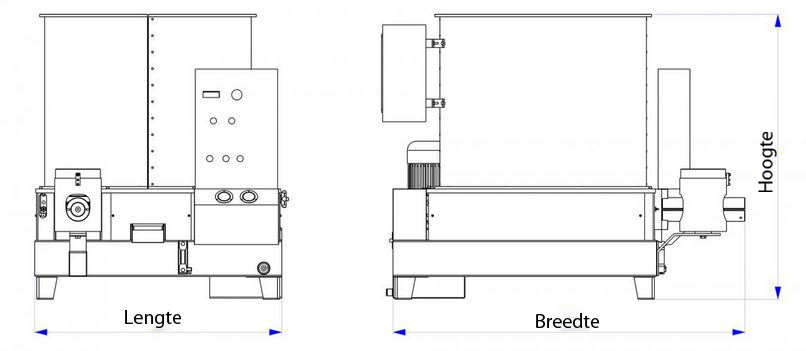

Depth
|
mm
|
1650
|
1650
|
1730
|
1800
|
2100
|
2300
|
|
Width
|
mm
|
1150
|
1160
|
1250
|
1200
|
1350
|
1350
|
|
Height
|
mm
|
1460
|
1460
|
1470
|
1480
|
1540
|
1540
|
|
Silo diameter ø
|
mm
|
1000
|
1000
|
1000
|
1000
|
1200
|
1200
|
|
Weight
|
kg
|
830
|
850
|
960
|
1180
|
1600
|
1800
|
|
Oil temperature sensor
|
–
|
incl.
|
incl.
|
incl.
|
incl.
|
incl.
|
incl.
|
|
Oil level gauge
|
–
|
incl.
|
incl.
|
incl.
|
incl.
|
incl.
|
incl.
|
|
Level detector
|
–
|
option
|
option
|
option
|
option
|
option
|
option
|
|
Inspection Door
|
–
|
option
|
option
|
option
|
option
|
option
|
option
|
Filter unit SMOB36-15 with briquette press
We would like to help you.
You can contact us by phone or e-mail: +31 (0)517 – 39 49 42 / info@meconaf.nl
